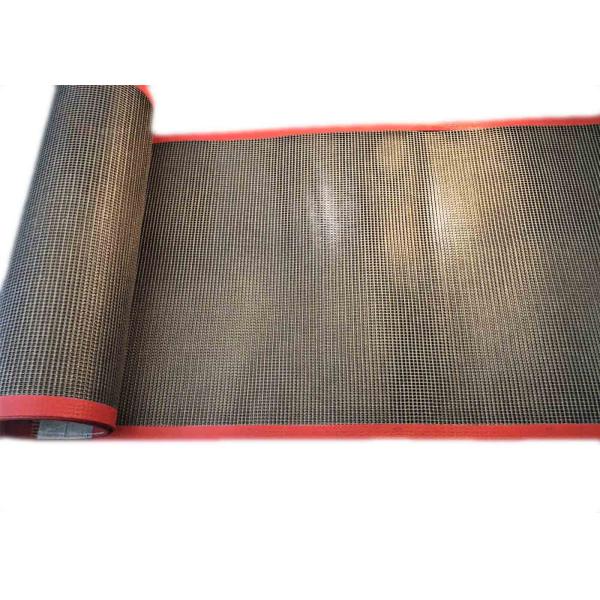

4mm×4mm teflen conveyor belts mesh belt for polyester nonwoven materials
Description of the teflen conveyor belt:
Our PTFE Belt all can used for conveyor industry and food industry !
Improving the industrial conveyor belt hopper is one of the effective measures to prevent premature failure of the conveyor belt. In order to improve the delivery of the hopper, the belt conveyor has a 2.5-fold increase in the ability to pass foreign objects.
The long and large foreign objects are in the funnel wall and the conveyor belt. The possibility of tearing the conveyor belt by foreign matter is reduced during the process of transporting between the cards.
The funnel in the hopper, the gap between the conveyor belts and the larger running direction of the conveyor belt, solves the problem of coal, gift card between the conveyor belt and the language board, and eliminates the damage caused by the conveyor belt. Large hopper with buffer baffle inside to prevent material from directly hitting the conveyor belt.
| Material | PTFE |
| Standard size | 4*4mm |
| Place of original | Hebei,China |
| Weight | 120-160g/m2 |
| Color | Red Wedge |
| Lengthh | as requirements |
| Width | as requirements |
| Joint | Yes,with joint |
Features of the teflen conveyor belt:
1. Non-adhesive: it is not easy to adhere to any material.Easy to clean the various oil stains, stains or other fixtures attached to the surface;The pulp, resin, paint and so on almost all adhesive matter can be simply removed;
2. Drug resistance and non-toxicity.Almost all potions.
3. Good dimensional stability (the elongation coefficient is less than 5‰) and the strength is high.
4. Good mechanical properties.
Specification of the teflen conveyor belt:
| No. | Item | Normal size |
| 1 | 400 | 400×1520/400×1830 |
| 2 | 450 | 450×1530/450×1830 |
| 3 | 460 | 460×1530/460×1830 |
| 4 | 500 | 500×1530/500/1880,500×1830/500×2450 |
| 5 | 600 | 500×1735/500×2020 |
| 6 | 600 | 600×2440/600×2675 |
| 7 | 600 | 600×2100/600×4200 |
| 8 | 600 | 600×1400/600×2000 |
| 9 | 700 | 700×2450/700×2890 |
| 10 | 900 | 900×2450 |
| 11 | 915 | 915×2450/915×3540 |
| 12 | 1000 | 1000×3950/1000×6730 |
| 13 | 1000 | 1000×3200 |
| 14 | 1010 | 1010×3200/1010×6000,1010×2830/1010×4720 |
| Mesh Size | Thickness | Weight | Tensile Strength |
| 1*1mm | 0.5mm | 370g/ m2 | 310/290N/cm |
| 2*2mm | 0.7mm | 450g/ m2 | 350/310N/cm |
| 4*4mm | 1.0mm | 400g/ m2 | 390/320N/cm |
| 4*4mm | 1.2mm | 600g/ m2 | 895/370N/cm |
| 10*10mm | 1.2mm | 450g/ m2 | 360/300N/cm |
| 0.5*1mm | 0.5mm | 420g/ m2 | 310/290N/cm |
| 2*2.5mm | 0.9mm | 600g/ m2 | 390/320N/cm |
Application of the teflen conveyor belt:
| Textile, |
| Dyeing and printing: |
| Printing drying, |
| Bleaching cloth drying, |
| Fabric shrinkage drying, |
| Non-woven cloth drying, etc. |
| Oven conveyor belt. |
